9-41000-217

30 ° tunnel slide

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Techincal Specifications

Lifting Device

Y

Total Length

16.35 m

Total Width

7.00 m

Total Height

10.30 m

Minimum Space Length

18.35 m

Minimum Space Width

8.20 m

Minimum Space Height

-

Heaviest Single Piece

275.00 kg

(Total) Weight

1045.00 kg

Free Height of Fall

0.81 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.60 x 0.60 x 0.60 m volume: 0.22 m3

Foundation 2

5 pieces - 1.00 x 0.40 x 0.40 m volume: 0.16 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

3 pers.

Assembly Time

6 h

Assembly Details

-

Technical Data

Flange
mounting
Mounting height: 9.00 m Seat height: 9.10 m Slide inclination:
30 ° Tunnel
diameter: 0.80 m
Slide plate thickness: 2.5 mm
Support post: Stainless steel tube Ø 159 x 4 mm

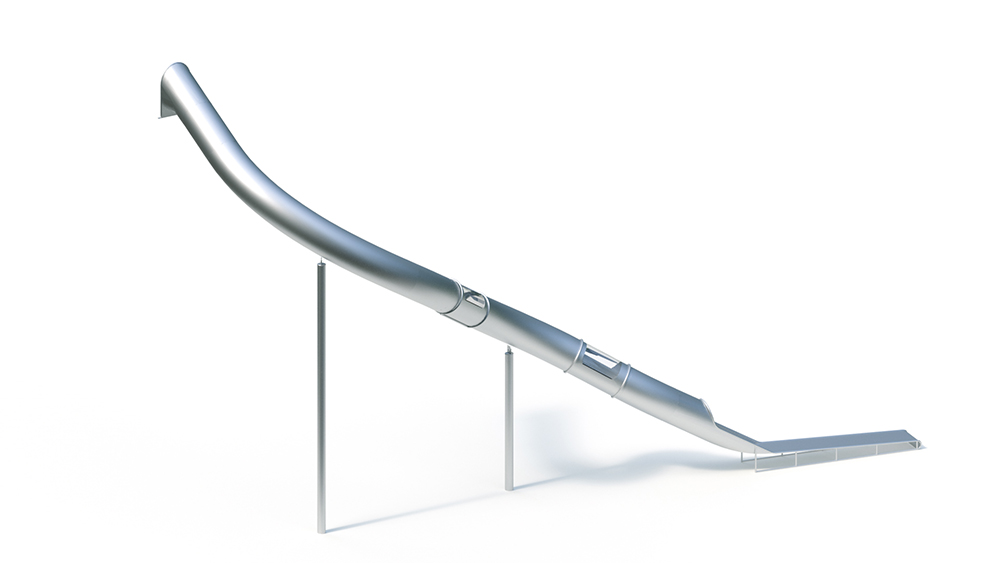

Slide segments made of stainless steel / dome light made of break-proof polycarbonate, particularly low-noise due to the tubular shape, four-part slide, including connecting flanges for on-site assembly. Consists of the following elements:

– 16100 K&K tunnel
slide single seat 30 ° – 16110 K&K tunnel slide straight 30 °
– 16176 K&K tunnel slide curve 30 °,
left
– 16110025 K&K tunnel slide straight 30 °,
length 0.25 m
– 16120 K&K tunnel slide straight 30 °
with window
– 16160 K&K tunnel slide curve 30 °,
right
– 16120 K&K tunnel slide straight 30 °
with window
– 161100125 K&K tunnel slide straight 30 °,
length 0.125 m
– 16170 K&K tunnel slide curve 30 °,
left
– 16190 K&K tunnel slide outlet (30 °)

Including K&K landslide support post, support post made of stainless steel tube Ø 12 cm, mounting flange made of stainless steel.

Foundations:
2 pcs. 0.60 x 0.60 x 0.60 m
5 pieces. 1.00 x 0.40 x 0.40 m
amount of concrete: 1.23 m³
