137417M

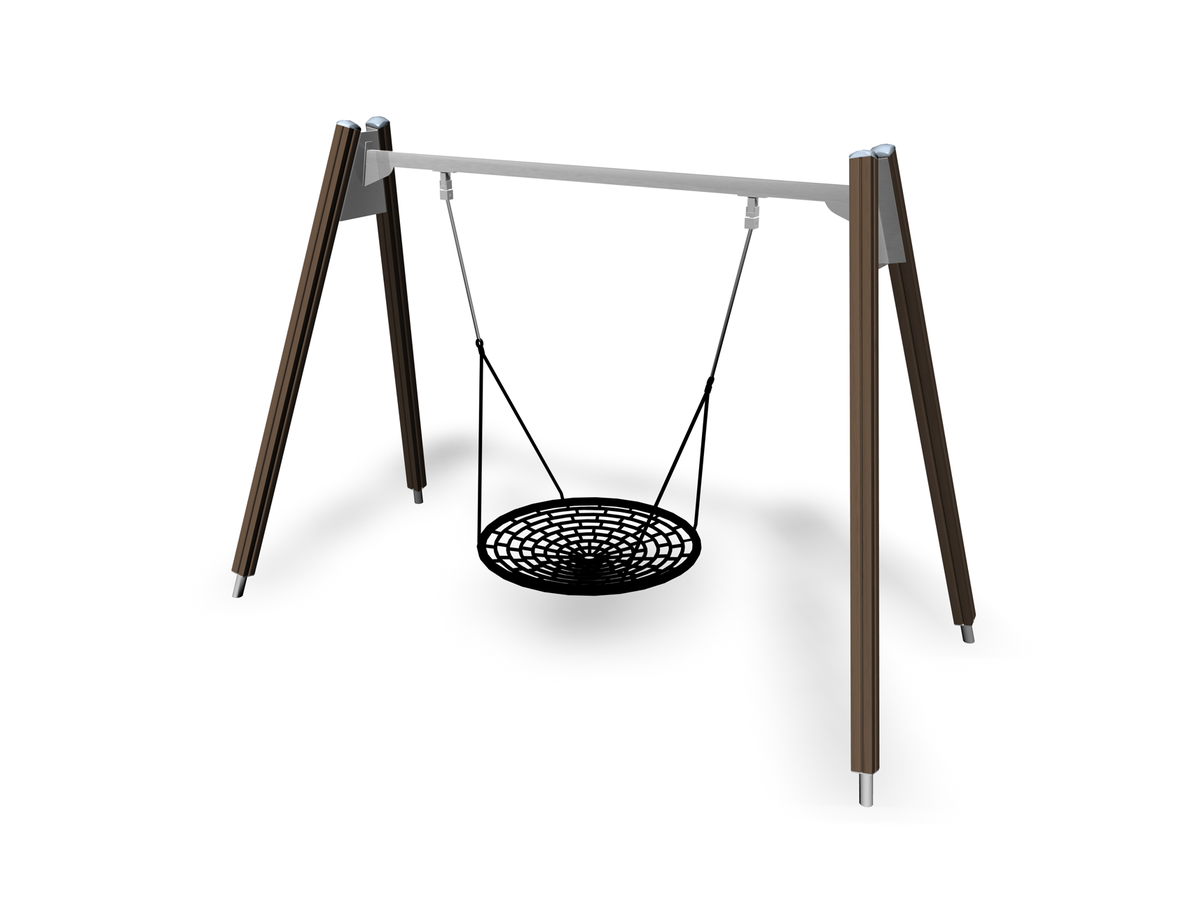

Bird’s Nest Swing

This swing is everyone’s favourite! Children, youngsters and adults alike will love swinging and lounging in the birds’ nest swing. With the streamlined design it will fit nicely in all surroundings. The spacious and high quality seat is designed and manufactured to last very high usage, without compromising the comfort of the swing users. To ensure that people with physical limitations can access the product, please place it so that the surface is hard enough for independent or assisted access.

Safety StandardsEN 1176-1, 2 TÜV
User Age1+
Amount Of Users4
Download Product Sheet

Technical Information

Length

3910MM

Width

1730MM

Height

2700MM

Heaviest Part

55.895KG

Largest Part

2940MM

Min Space Height

2900MM

Falling Space Area

21.1M²

Falling Space Length

8100MM

Falling Space Width

2600MM

Impact Area

21.1M²

Max Free Fall Height

1400MM

Made In Finland

Materials

Material Text

The seat, diameter of Ø 1.365 metres, is made of steel-enforced rope.

The swing chains are made of ø 7 mm stainless steel, which guarantees the best protection against corrosion even in the harshest conditions. The chain goes all the way to the seat and does not change into rope / cable halfway. The chain is protected by a rubbery protective cover. The steel chain ensures that the swing can bear heavier load.

The swing bearings are cast stainless steel passivated against corrosion. The structure has been efficiently designed to eliminate all movement outside the actual bearing surfaces. The bearings are soundless and highly durable against mechanical and environmental strain. The bearings do not require maintenance as such, but are easy to detach with tools, for seasonal storage for example.

The painted framework of the swings consists of pressure-impregnated, glue-laminated, fine-grained timber and a steel beam in grey colour.

Underground foundation without concreting can be performed using foundation plates. You can choose the foundation type when placing your order.

Installation

Installation Time

6H (for 1)

Netto Weight

182.14KG
